PCBN Blanks For Cutting Tools

Carbided PCBN

Number of views:

1000

Carbided PCBN

規格型號：

Category

PCBN Blanks For Cutting Tools

SFD PCBN, with characteristic of high hardness, high wear resistance and high thermal stability, is made of selected CBN powder and sintered at high pressure and high temperature, with metals or ceramic binders. CB series is composed of CBN layer and tungsten carbide base.

Retail price

0.0

元

Market price

0.0

元

Number of views:

1000

Quantity

Stock:

Email:info@sf-diamond.com

Advisory



Product description

Parameters

Description

Application

SFD PCBN is ideal for tools in machining of high hardness and hard processed ferrous materials (HRC45-65), such as hardened steel, gray cast iron, heat resistant alloy, high-speed steel, hard facing alloys, Ni-Cr alloy, powder metallurgy metals. PCBN is typically used to machine brake discs, engine blocks, engine cylinder liners, brake drums, flywheels, valve seats and guides, gears, mold and die parts, etc.

Specification

Carbide backed PCBN disc
Disc	Dimensions(mm)			Grade Available
	Diameter(D)	Thickness (T)		Grade Available
	58	1.6/2.4/3.2/4.8		CB960，CB900, CB720, CB500
Carbide backed PCBN semi-finished inserts
Shape	ISO	Dimensions (mm)		Grade Available
Shape	ISO	IC	Thickness(T)	Grade Available
Rounds	RNUN-0903XX	9.8	3.2	CB960，CB900, CB720, CB500
	RNUN-1203XX	13	3.2
	RNUN-1204XX	13	4.76
	RNUN-1904XX	19.4	4.76
Squares	SNUN-0603XX	6.7	3.2	CB960，CB900, CB720, CB500
	SNUN-0903XX	9.8	3.2
	SNUN-1203XX	13	3.2
	SNUN-1204XX	13	4.8
Triangles	TNUN-1103XX	6.7	3.2	CB960，CB900, CB720, CB500
	TNUN-1603XX	9.9	3.2
	TNUN-2204XX	13.2	4.8

Advantage

1. Multiple grades of PCBN blanks and wide range of application

2. High cost-effective, Easy Processing, Excellent performance, High wear resistance, Consistence

3. The largest disc diameter (58 mm) of PCBN produced in China

4. Strong technical support, Customized R&D PCBN and service

5. Strict quality management system to guarantee the consistent quality

6. Short lead time: 1-2 days for PCBN Disc. 3-4 days for 10,000 pieces of PCBN tips

Application Area

SF-Diamond PCBN (polycrystalline cubic boron nitride) is ideal for tools used to machine hard ferrous metal items (HRC45-65) such as high speed steel, bearing steel, cast iron,etc.

It’s typically used to machine brake discs, engine blocks, engine cylinder liners, brake drums, flywheels, valve seats and guides, gears, mold and die parts etc.The surface finish of the workpiece is good, which can replace grinding with turning, greatly improve labor efficiency and effectively reduce production costs.

Solid CBN

None

Inquiry And Quote

Username used for comment:

客戶留言

Description:

* Message contents：

* Name：

Telephone：

* E-mail：

Company name：

Country：

* Products interested：

Related Products

Cylinder block and head of automobile Engine, roll and brake disc

Solid CBN

SF Diamond (SFD) manufactures the largest PCD cutting tool blanks in China. Its performance and quality is equal to the highest world-class standards.

PCD blanks for cutting tools

SFD CBN, with characteristic of high hardness, high wear resistance and high thermal stability, is made of selected CBN powder and sintered at high pressure and high temperature, with metals or ceramic binders. BN series is solid CBN.

Solid CBN

Carbided PCBN

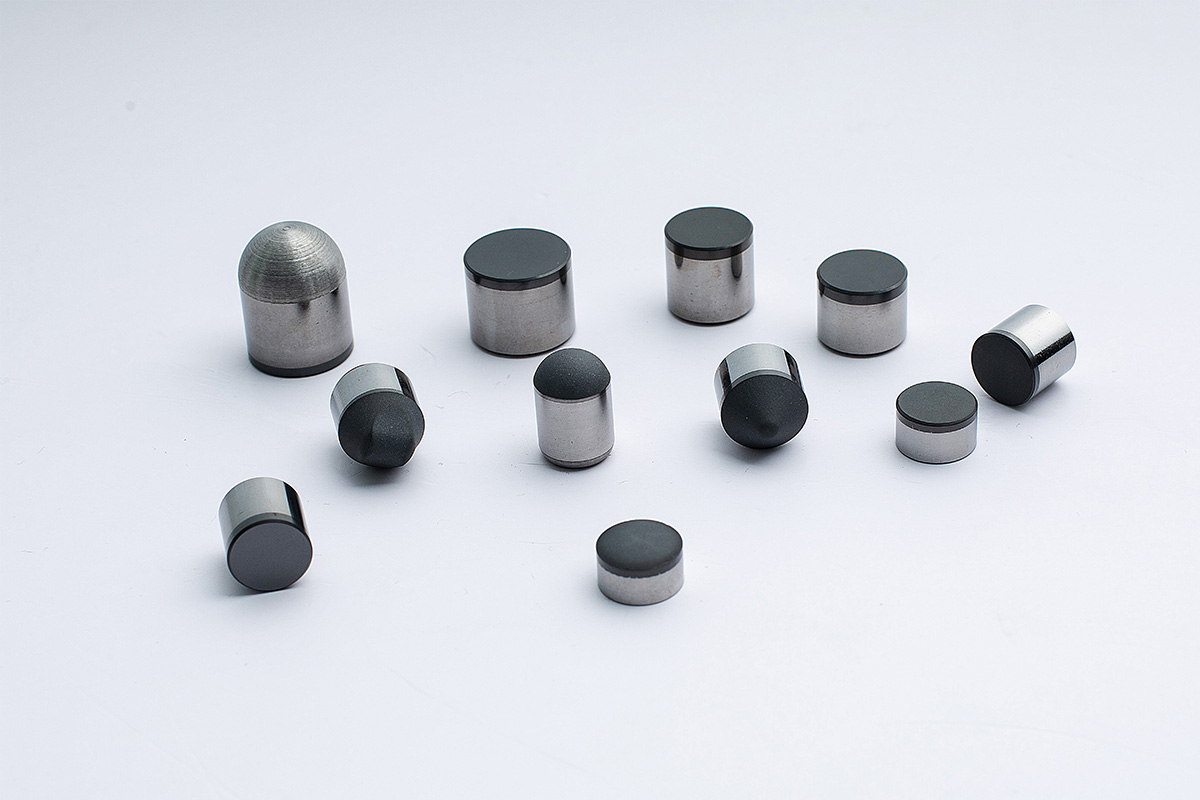

SFD has the most advanced PDC performance test lab in China targeted on product development for the O&G drilling and mining industry. This enables SFD to provide our customers with practical solutions for their PDC cutter needs.

PDC cutters

SFD is the first manufacturer of polycrystalline diamond (PCD) die blanks in China. With more than 20 years developing in this industry, SFD has been the largest PCD die blanks manufacturer in China, and has been one of only two manufacturers worldwide who can produce super large PCD die blanks in Φ40mm by 25mm height. Till now, SFD PCD has been used in more than 40 countries and areas, and is well received by customers for longer service life, precision wire, and competitive prices.

PCD die blanks for wire drawing

SFD set up an advanced, world-class testing and inspect center for PCD dies, to check the quality of PCD die blanks. With the development of test center, SFD accumulates a lot of experience on SFD PCD die blanks, which will be more helpful in the further R&D development. Meanwhile, SFD can supply technical supports to customer when they met issues.

PCD Semi-finished Dies Services

Cylinder block and head of automobile engine, gear, camshaft,roll and brake disc

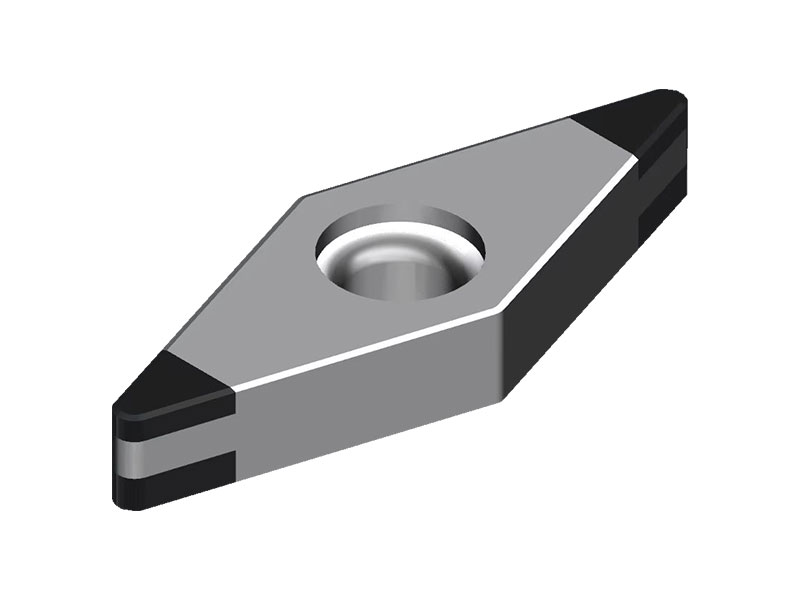

2 tips PCBN inserts
