Solid CBN

規格型號：

Category

PCBN Blanks For Cutting Tools

SFD CBN, with characteristic of high hardness, high wear resistance and high thermal stability, is made of selected CBN powder and sintered at high pressure and high temperature, with metals or ceramic binders. BN series is solid CBN.

Retail price

0.0

元

Market price

0.0

元

Number of views:

1000

Quantity

Stock:

Email:info@sf-diamond.com

Advisory



Product description

Parameters

Description

Application

SFD CBN is ideal for tools in machining of high hardness and hard processed ferrous materials (HRC45-65), such as hardened steel, gray cast iron, heat resistant alloy, high-speed steel, hard facing alloys, Ni-Cr alloy, powder metallurgy metals. CBN is typically used to machine brake discs, engine blocks, engine cylinder liners, brake drums, flywheels, valve seats and guides, gears, mold and die parts, etc.

Specification

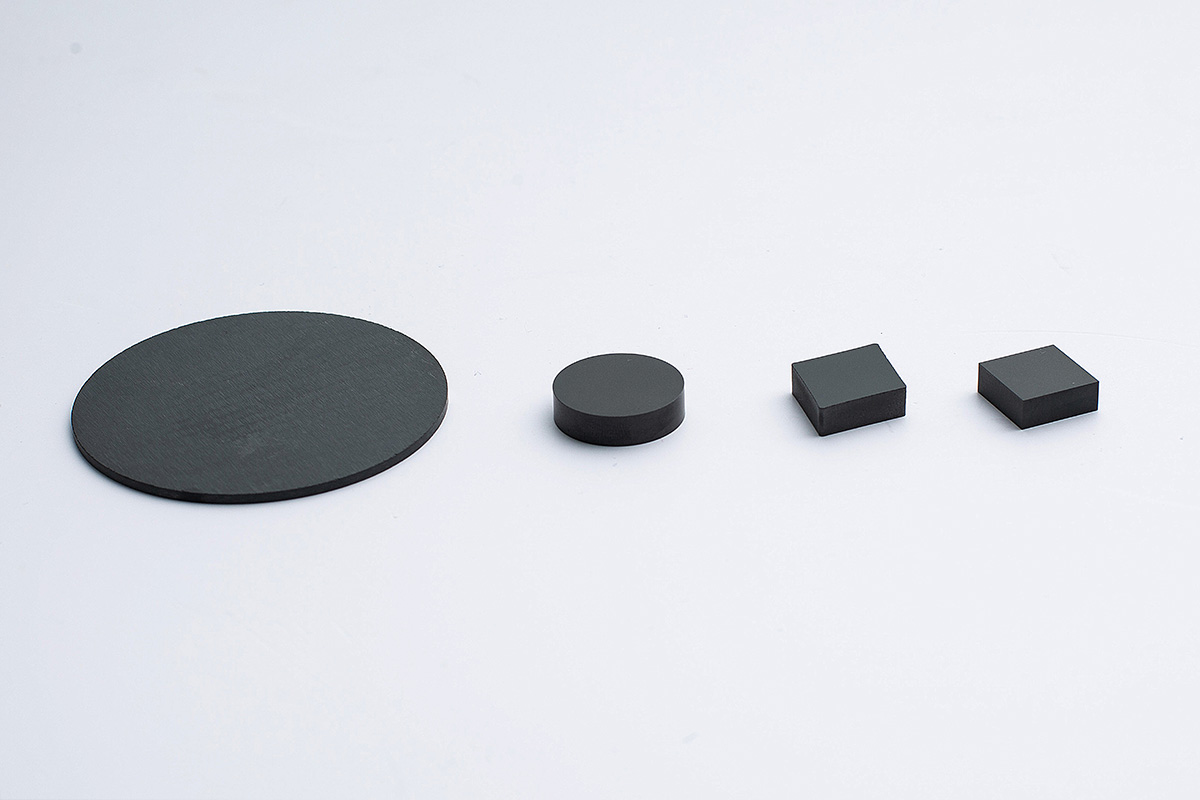

Solid CBN disc
Disc	Diameter(D)	Thickness (T)		Grade Available
	48	3.2/4.76		BN960, BN900 BN720, BN500
Solid CBN semi-finished inserts
Shape	ISO	Dimensions (mm)		Grade Available
Shape	ISO	IC	Thickness (T)	Grade Available
Rounds	RNUN-0903XX	9.8	3.2	BN960, BN900 BN720, BN500
	RNUN-0904XX	9.8	4.8
	RNUN-1203XX	13.1	3.2
	RNUN-1204XX	13.1	4.8
	RNUN-1207XX	13.1	7.94
	RNUN-1507XX	16.2	7.94
	RNUN-1904XX	19.4	4.8
	RNUN-2004XX	20.7	4.76
	RNUN-2504XX	25.7	4.8
Squares	SNUN-0903XX	9.8	3.2	BN960, BN900 BN720, BN500
	SNUN-0904XX	9.8	4.8
	SNUN-1203XX	13.1	3.2
	SNUN-1204XX	13.1	4.8
	SNUN-1207XX	13.1	7.94
	SNUN-1504XX	16.2	4.8
	SNUN-1904XX	19.4	4.76
Rhombus	CNUN-0903XX	9.8	3.2	BN960, BN900 BN720, BN500
	CNUN-0904XX	9.8	4.8
	CNUN-1203XX	13.1	3.2
	CNUN-1204XX	13.1	4.8
Triangles	TNUN-1103XX	6.6	3.2	BN960, BN900 BN720, BN500
	TNUN-1603XX	9.8	3.2
	TNUN-1604XX	9.8	4.8

Advantage

1. Multiple grades of CBN blanks and wide range of application

2. High cost-effective, Easy Processing, Good performance, High wear resistance, Consistence

3. Strong technical support, Customized R&D CBN and service

4. Strict quality management system to guarantee the consistent quality

5. Short lead time: 1-2 days for CBN Disc. 3-4 days for 10,000 pieces of CBN tips

Application Area

SF-Diamond CBN (polycrystalline cubic boron nitride) is ideal for tools used to machine hard ferrous metal items (HRC45-65) such as high speed steel, bearing steel, cast iron,etc.

It’s typically used to machine brake discs, engine blocks, engine cylinder liners, brake drums, flywheels, valve seats and guides, gears, mold and die parts etc.The surface finish of the workpiece is good, which can replace grinding with turning, greatly improve labor efficiency and effectively reduce production costs.

None

CBN

Inquiry And Quote

Username used for comment:

客戶留言

Description:

* Message contents：

* Name：

Telephone：

* E-mail：

Company name：

Country：

* Products interested：

Related Products

Cylinder block and head of automobile Engine, roll and brake disc

Solid CBN

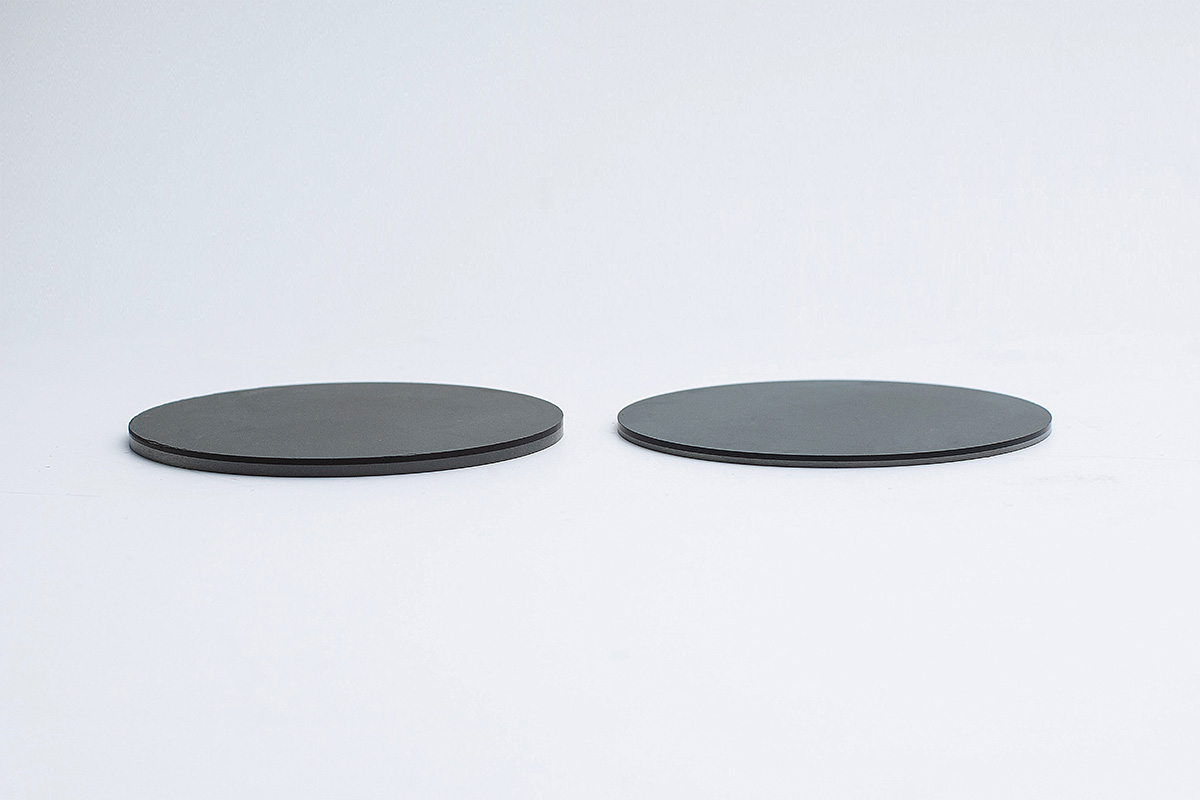

SF Diamond (SFD) manufactures 75mm diameter PCD cutting tool blanks in China.

PCD blanks for cutting tools

Solid CBN

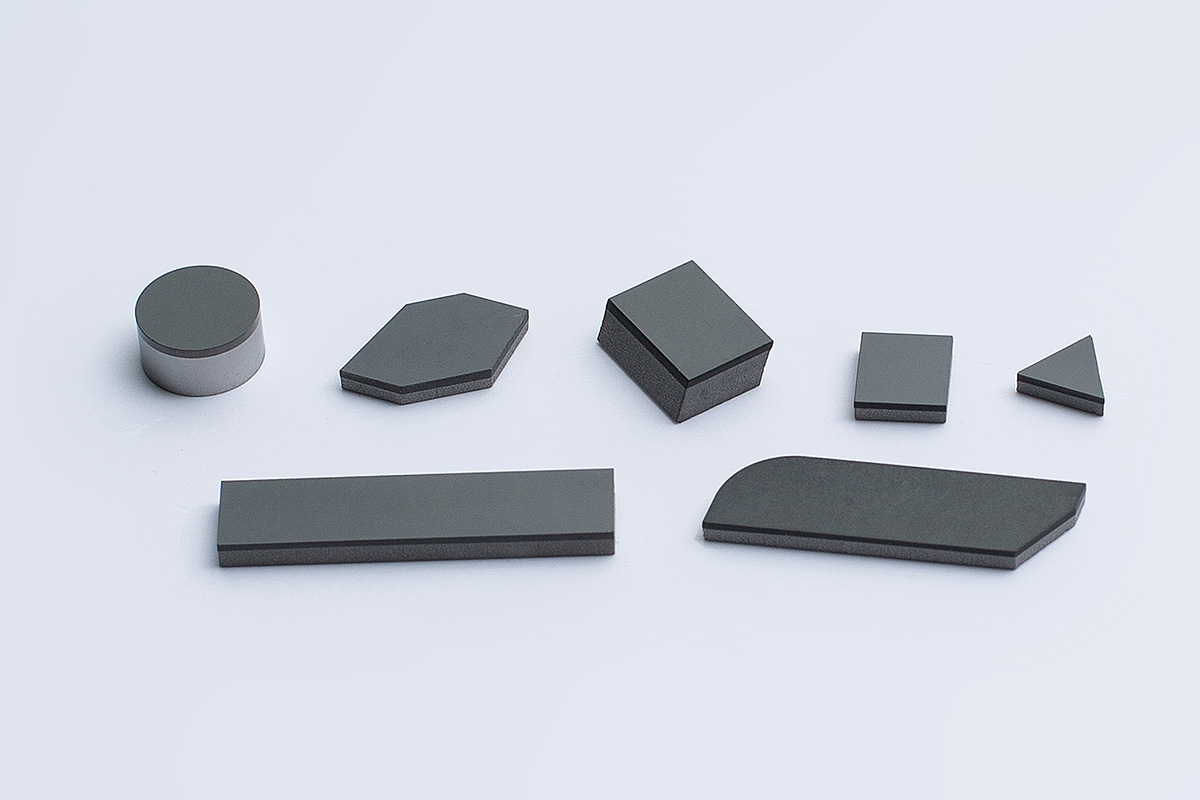

SFD PCBN, with characteristic of high hardness, high wear resistance and high thermal stability, is made of selected CBN powder and sintered at high pressure and high temperature, with metals or ceramic binders. CB series is composed of CBN layer and tungsten carbide base.

CBN

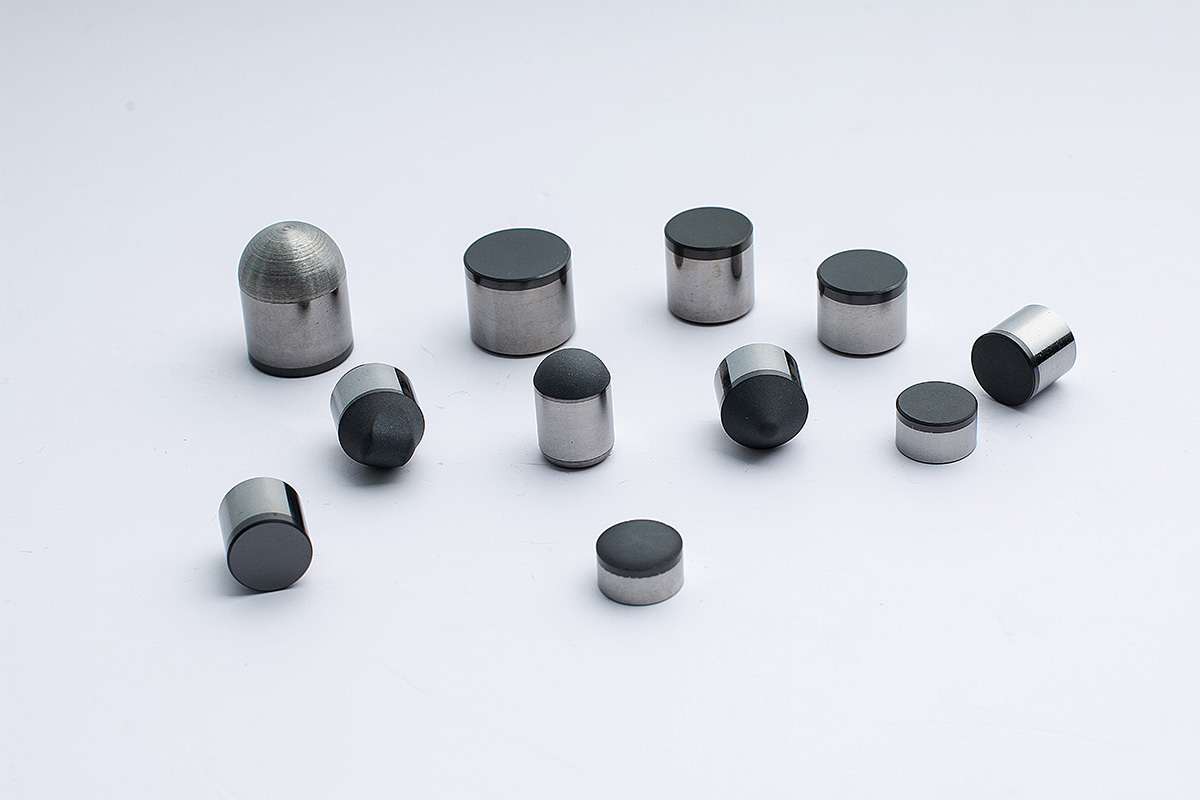

SFD has the advanced PDC performance test lab in China targeted on product development for the O&G drilling and mining industry. This enables SFD to provide our customers with practical solutions for their PDC cutter needs.
